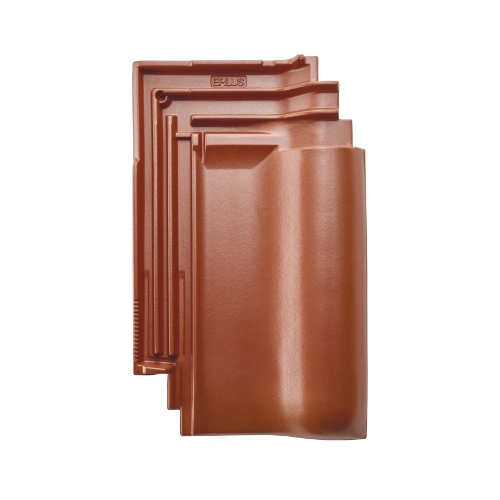

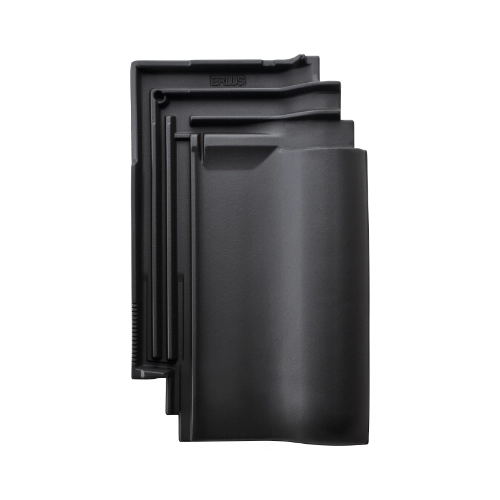

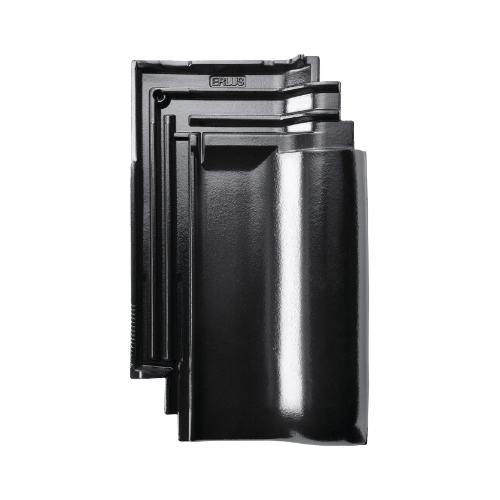

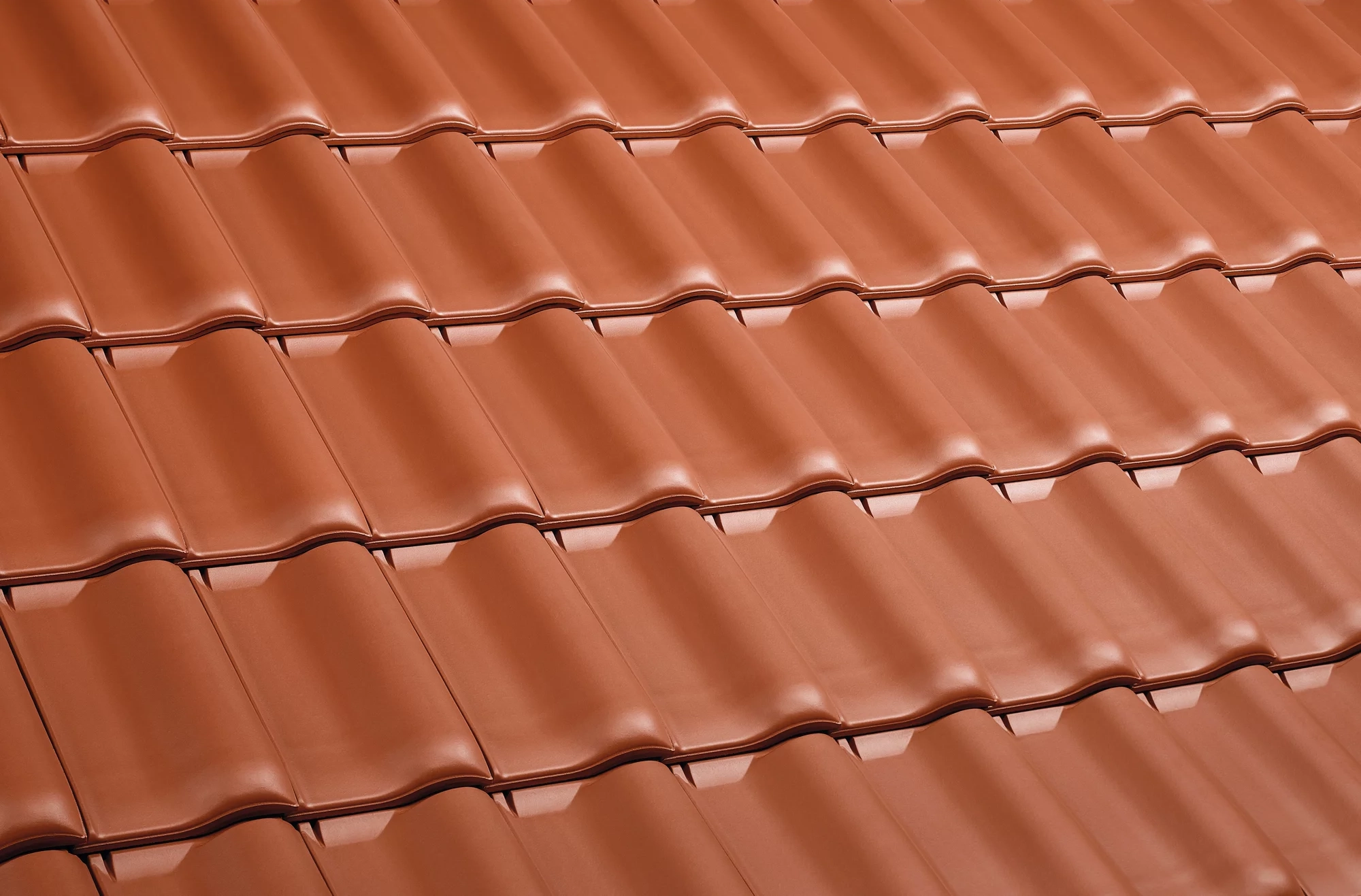

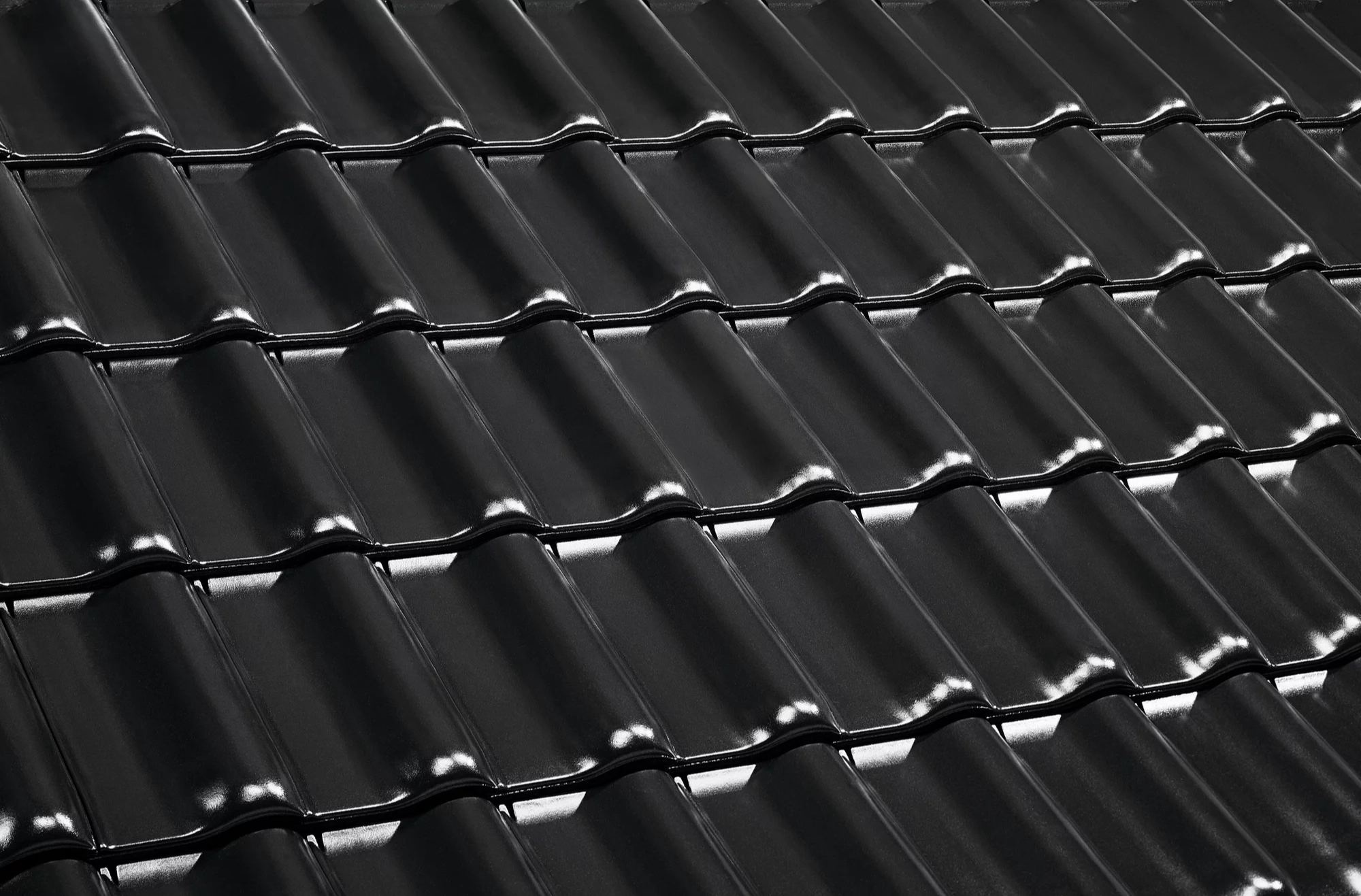

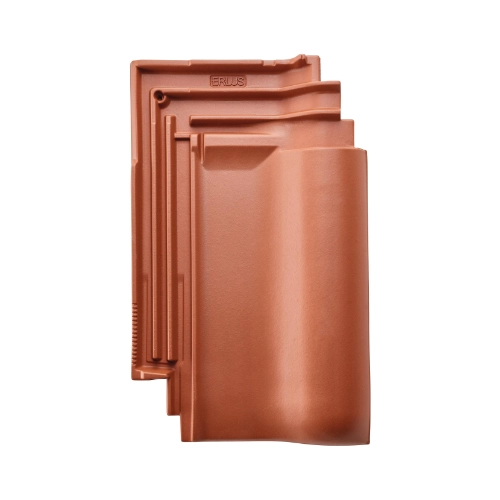

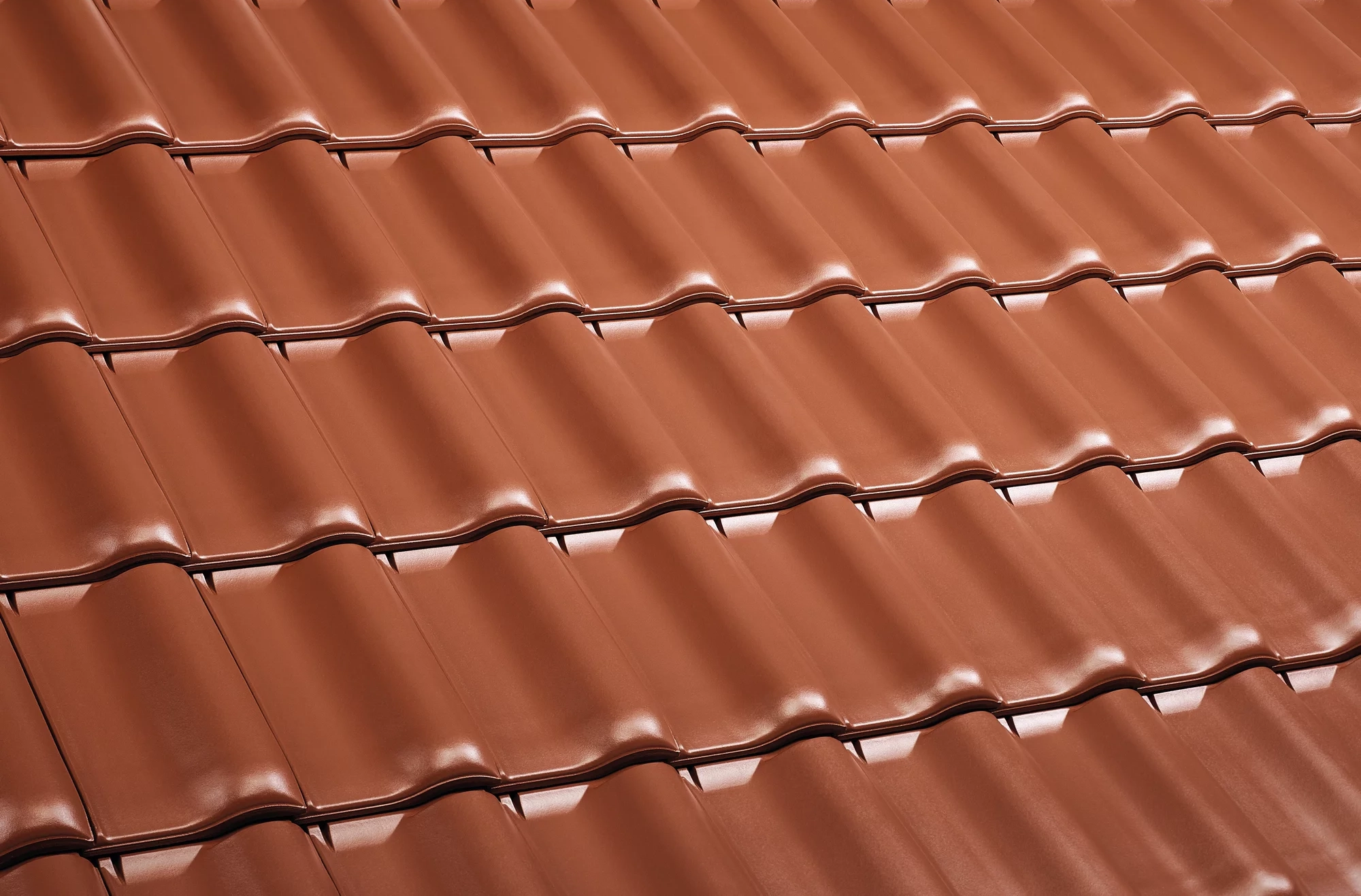

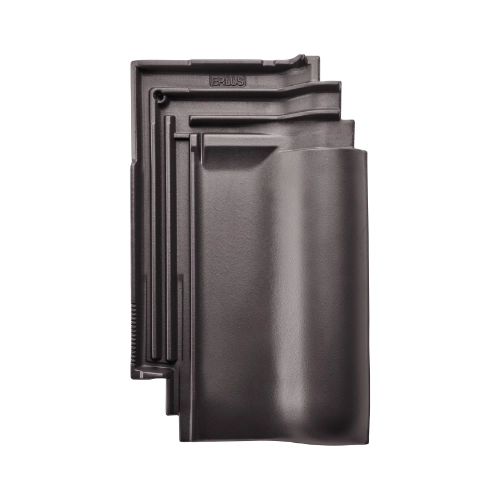

The Erlus E58 RS Low Pitch Pantile Provides Superior Performance at Longer Rafter Lengths
The E58 RS is purpose-built for low-pitch roofs where performance is critical. Thanks to its deep, precision-engineered interlocking channels, the tile can be installed at pitches as low as 10°, significantly lower than standard pantiles. Its advanced design actively directs water away from the roof surface, ensuring fast, controlled drainage even on shallow slopes on long rafter lengths. The pronounced interlocking profile, featuring triple head and side locks, creates a highly secure barrier against water ingress.
Download brochure Product details
Product details
Dimensions:
Length 465 mm,
Width 285 mm,
Minimum Pitch:
Roofs 10° should use a 330g/m² underlay laid to boards, counter battens laid over PUR Nail sealing Tape and each tile must be clipped.
Please refer to our technical department for guidance
Pieces per m2:
12.5
Weight per piece:
4.25kg
Batten Gauge:
360 - 366mm
Cover Width:
219mm (+2/-2mm)
Weight per m2 laid
53 kg/m²

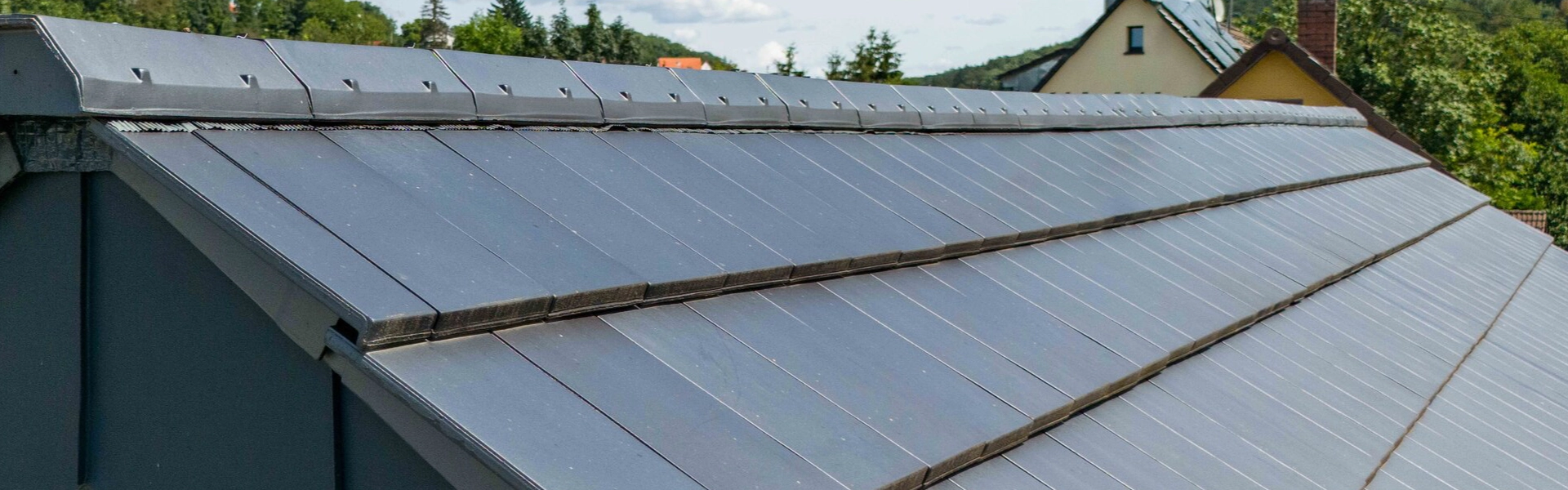

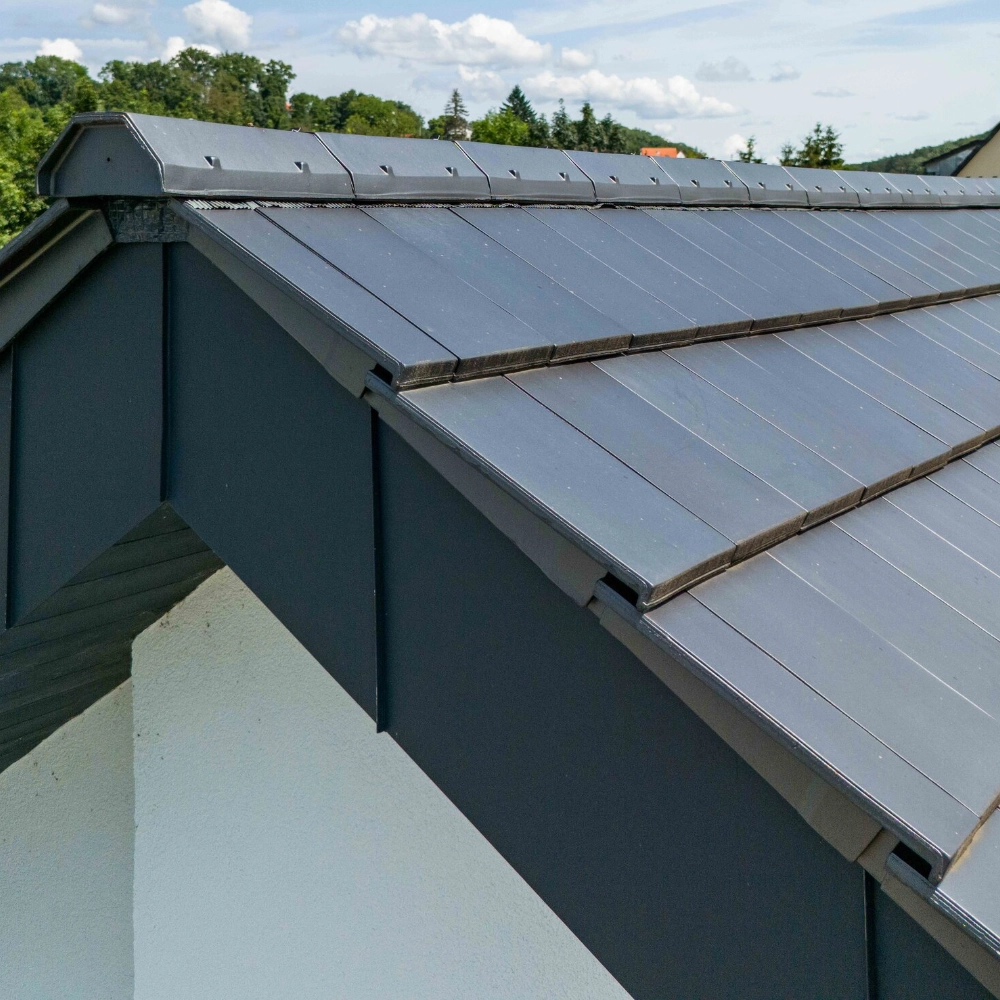

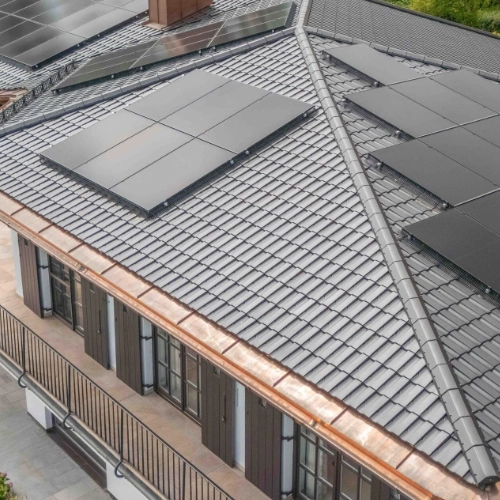

Other Erlus products
